TRUE LOCK Distal Humerus Lateral Anatomic Plate
TRUE LOCK Distal Humerus Lateral Anatomic Plates are indicated for;
• Intra-articular fractures of the distal humerus
• Supracondylar fractures of the distal humerus
•Nonunions of the distal humerus
•Osteotomies of the distal humerus
Distal humerus fractures make up 2% of all
fractures and approximately one third of humerus fractures

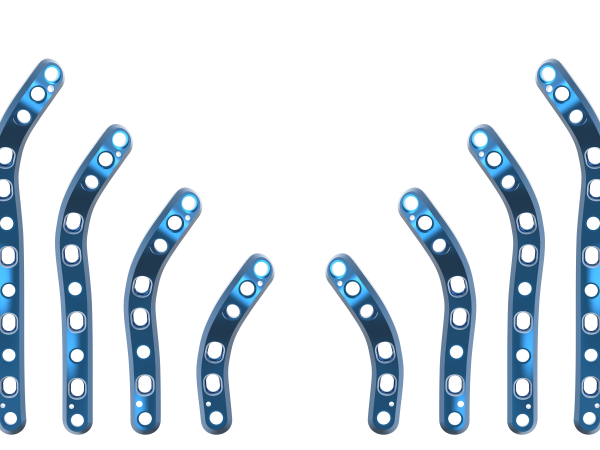

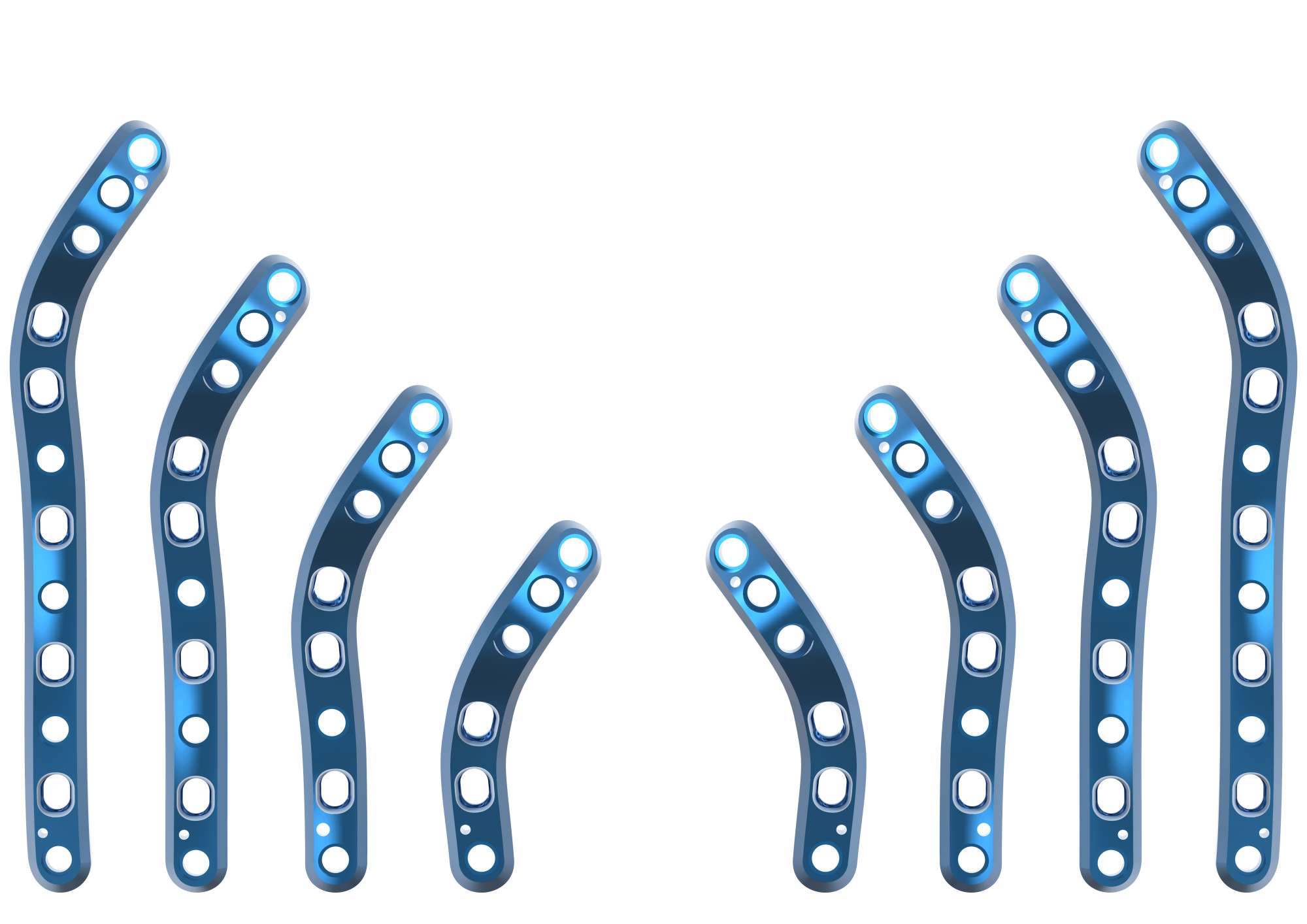

Anatomical plate; right & left
4
hole option between 6-12
TRUE LOCK Distal Humerus Lateral Anatomic Plates are
made
of Ti6Al4V ELI material (ASTM F136)
Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.

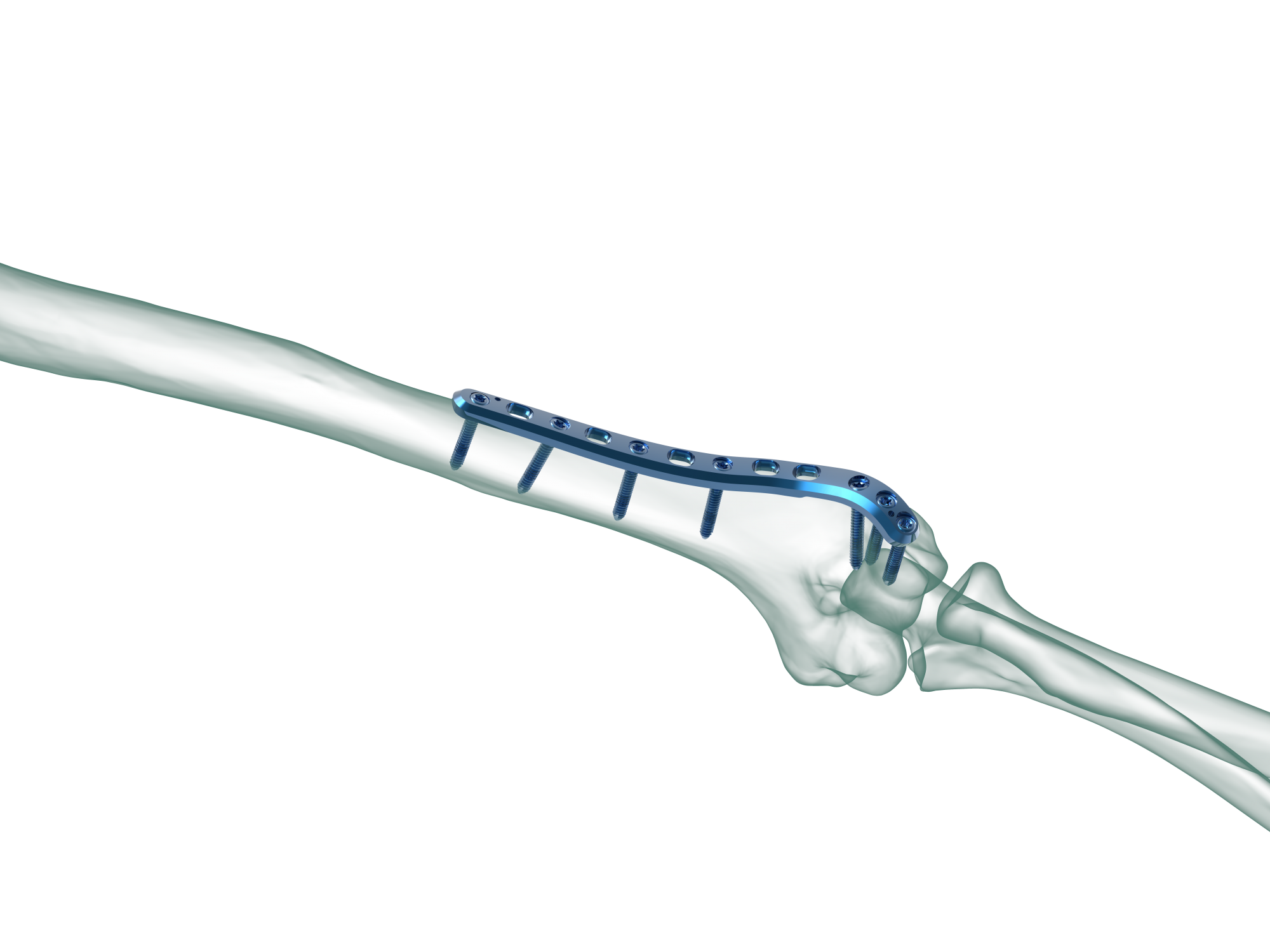

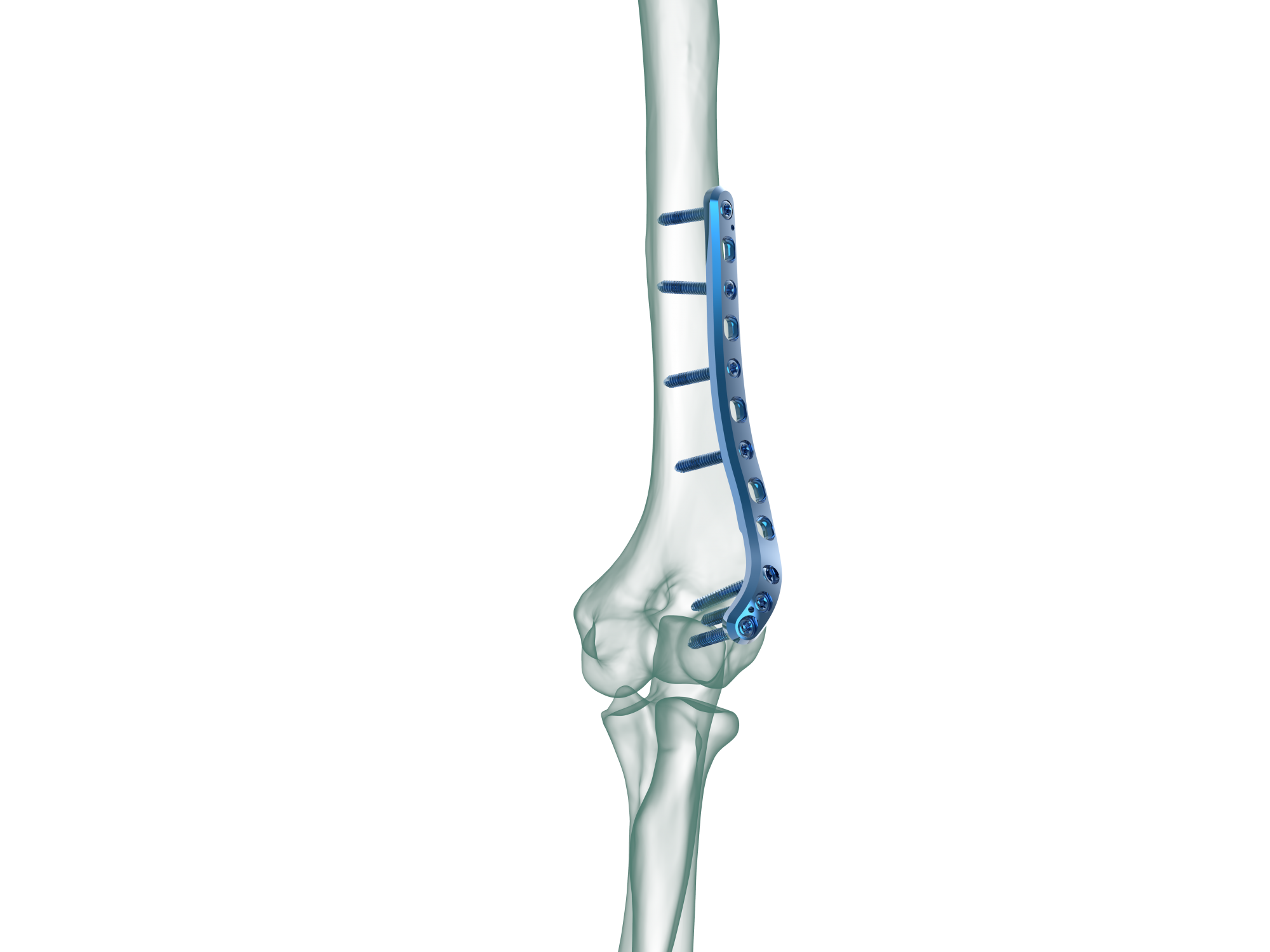

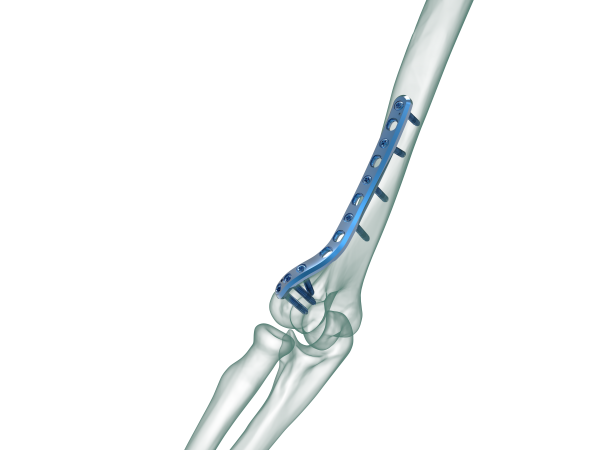

TRUE LOCK Distal Humerus Lateral Anatomic Plates are precontoured for anatomic fit. No need to bend during the surgery.
Elongated Combi hole in the neck and shaft facilitate plate adjustment and allow locking or compression options.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
