TRUE LOCK Distal Ulna Anatomic Plate
TRUE LOCK Distal Ulna Anatomic Plates are
indicated for fixation of fractures, osteotomies, nonunions, replantations, and fusions of small bones and small bone fragments, particularly in osteopenic bone.

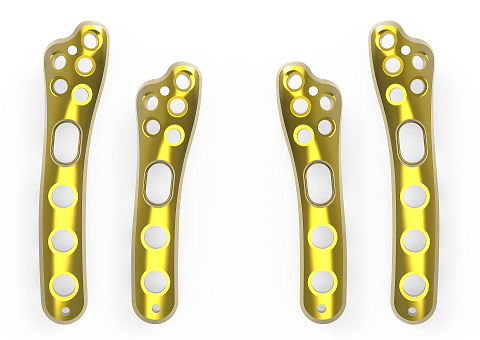

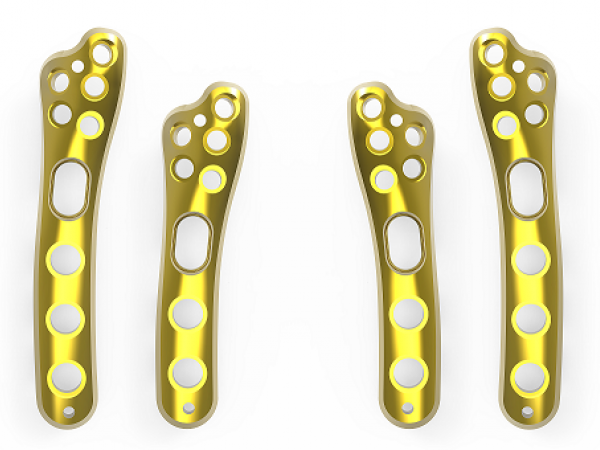

Anatomical plate; right & left
2 hole option
3-4 holes
TRUE LOCK Distal Ulna Anatomic Plates are
made
of Ti6Al4V ELI material (ASTM F136)
Narrow plate design, low screw-plate profile, rounded edges and polished surface are designed to minimize irritation of overlying soft tissue.
Round locking holes in the head accept 2.3 mm locking screws.
The combi-hole pro- vides flexibility of axial compression and locking capability throughout the length of the plate shaft.
Kirschner wire holes accept Kirschner wires (up to 1.5 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
