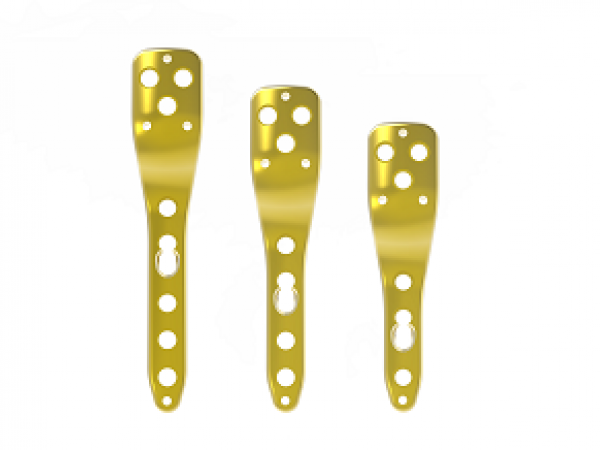

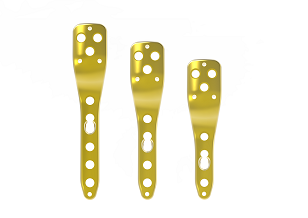

TRUE LOCK Pediatric Hip Proximal Femur Plate

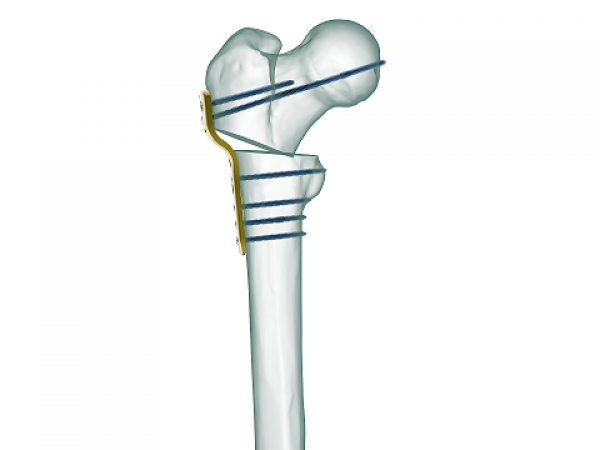

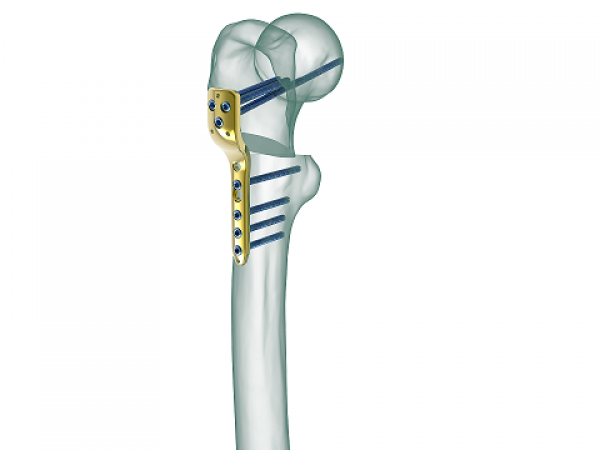

TRUE LOCK Pediatric Hip Proximal Femur Plates are indicated for varus and valgus stabil fixation and proximal femur rotaion osteotomy and fractures.

Hole	Offset	Length(mm)
3 delik	100°/6	65
4 delik	100°/6	75
5 delik	100°/6	85
3 delik	100°/12	65
4 delik	100°/12	75
5 delik	100°/12	85
3 delik	115°/6	65
4 delik	115°/6	75
5 delik	115°/6	85
3 delik	115°/12	65
4 delik	115°/12	75
5 delik	115°/12	85
3 delik	130°	65
4 delik	130°	75
5 delik	130°	85

Features

1

The plate is designed anatomically curved and low profile,its tapered tips make it easier to settle on the bone.

2

Thanks to the Kirschner wire holes, the plate can be temporarily fixed to the tibia, broken pieces can be reduced and the position of the plate relative to the bone can be adjusted.

3

Plate design and locking construct reduce muscle disrup- tion and soft tissue irritation.

4

The elongated hole in the shaft are designed to allow fine tuning of the reduction in the longitudinal axis.
