TRUE LOCK Proximal Humerus Anatomic Plate

TRUE LOCK Proximal Humerus Anatomic Plates are indicated for fractures and fracture dislocations, osteotomies, and nonunions of the proximal humerus, particularly for patients with osteopenic bone.

Proximal humerus fractures are % 4- 5 of all fracture types.

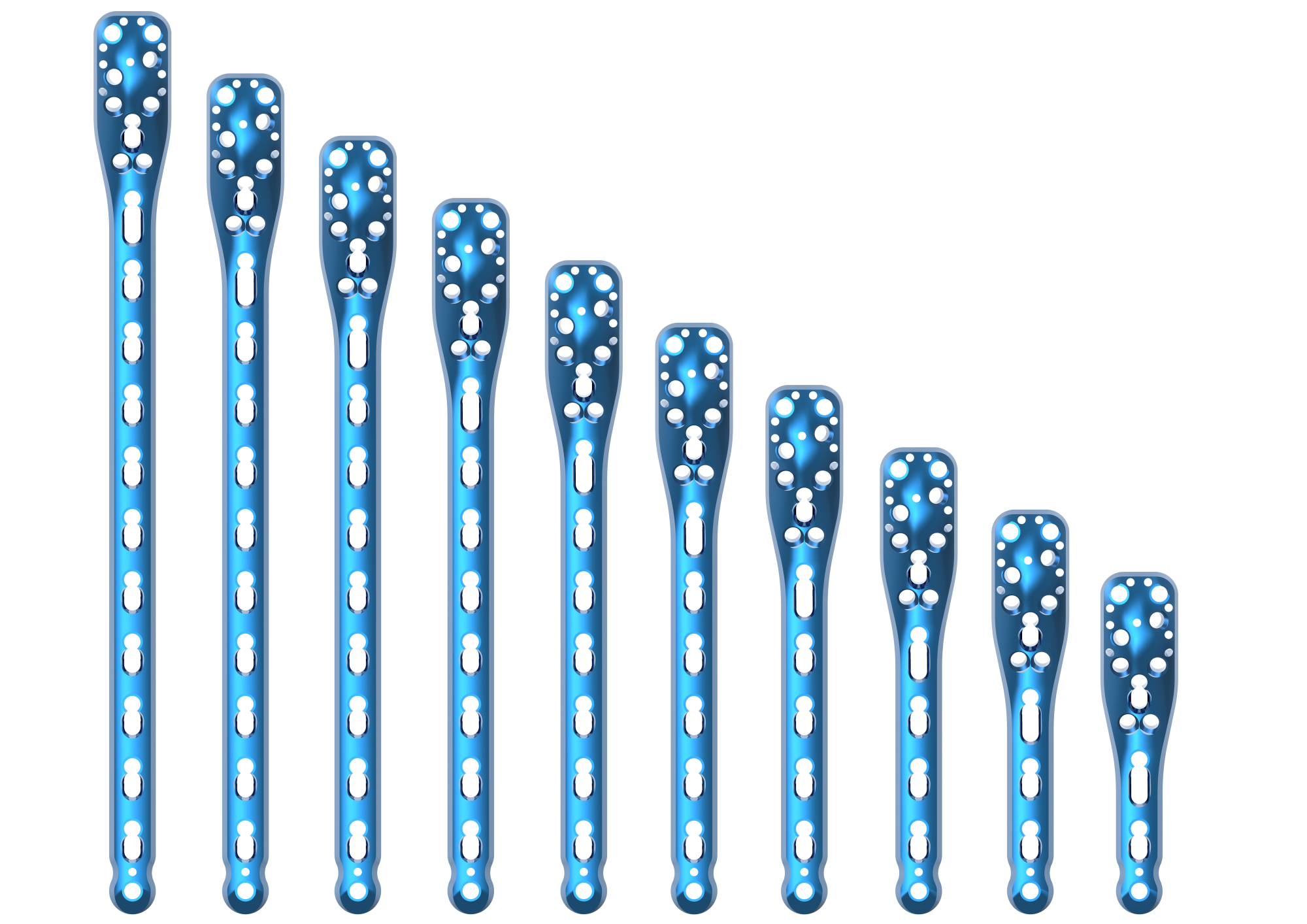

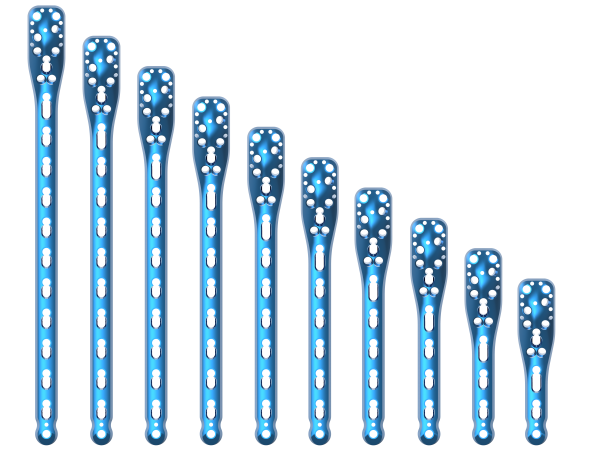

12 hole option between 3- 14


TRUE LOCK Proximal Humerus Anatomic Plates are made of Ti6Al4V ELI material (ASTM F136)

Features
1
Low plate-and-screw profile and rounded plate edges minimize potential for tendon and soft tissue irritation.
2
The combi-hole provides flexibility of axial compression and locking capability throughout the length of the plate shaft.
3
Kirschner wire holes accept Kirschner wires (up to 2.0 mm) to temporarily fix the plate to the bone , to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the bone.
4
Anatomically contured
5
Suture holes around the proximal end allow tissue and muscle collection, especially in fracture cases.
6
Distal shaft of standard plate consists of three or fourteen combi holes, including one elongated hole to aid in plate positioning
7

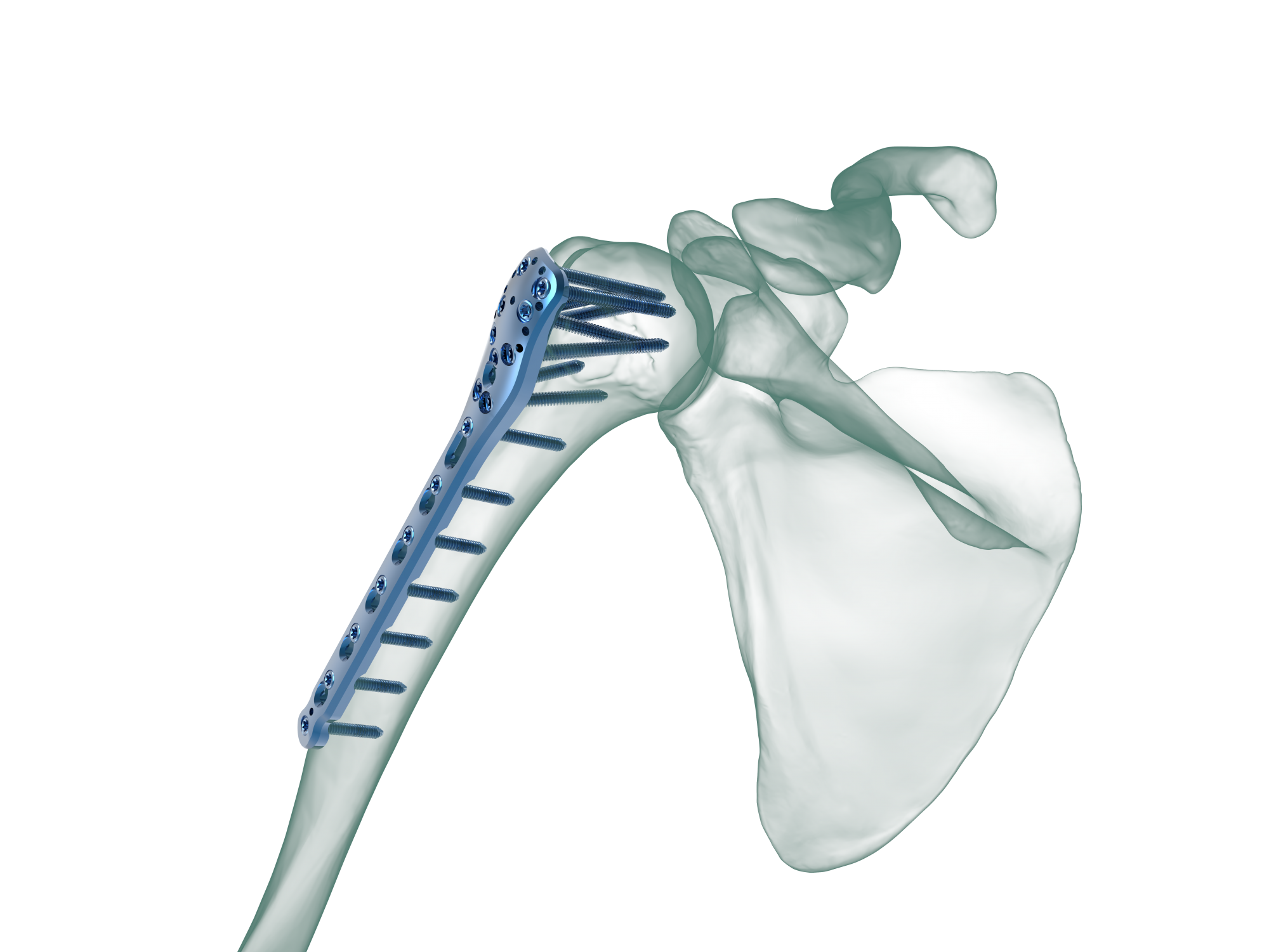

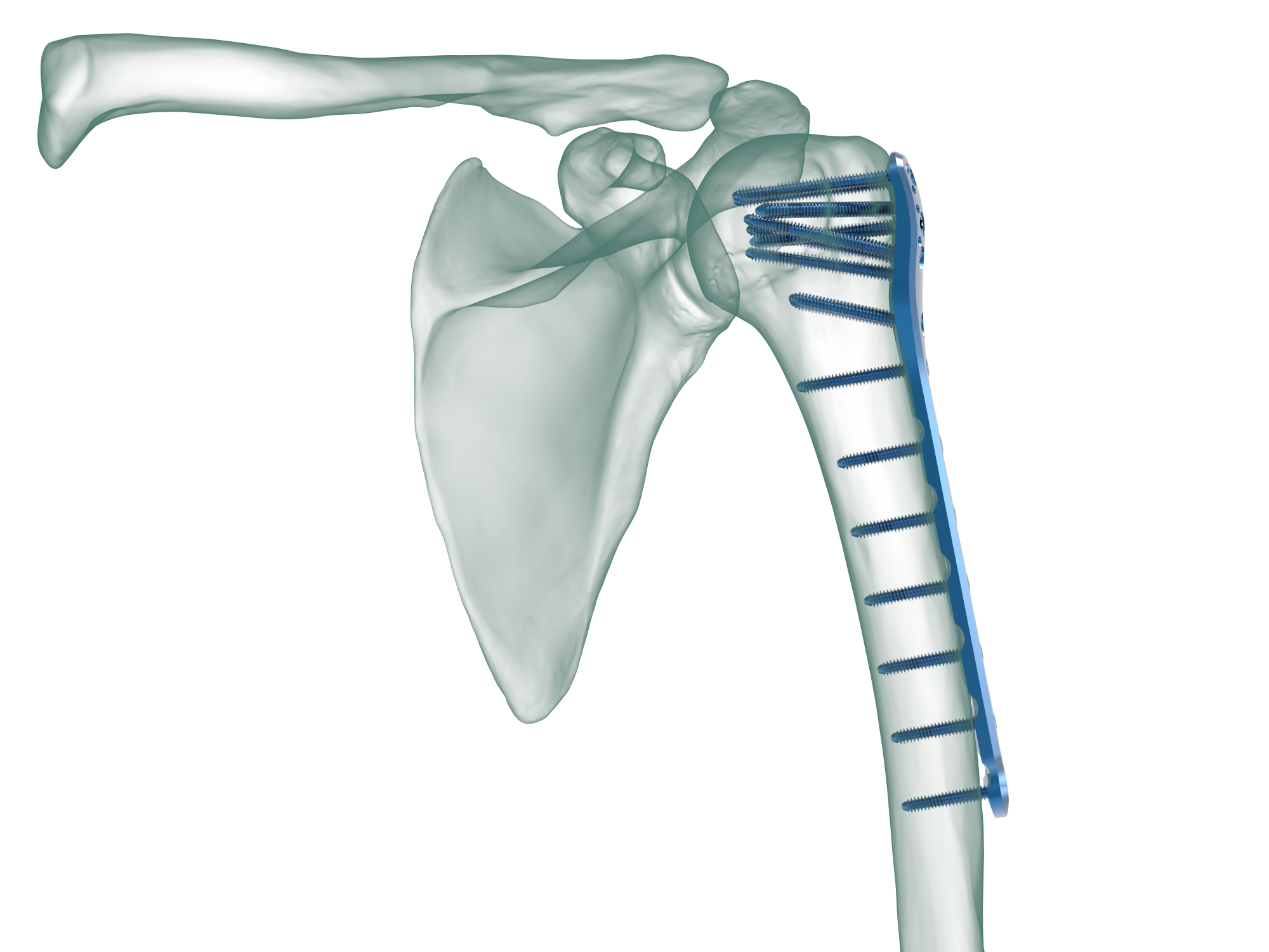

Permit multiple points of fixation to support the humeral head.
8
At the cancellous part of the bone near the joint, 4,0 mm cancellous locking screw option supports plate and screw fit well; prevents it from pull out.
Images Gallery
