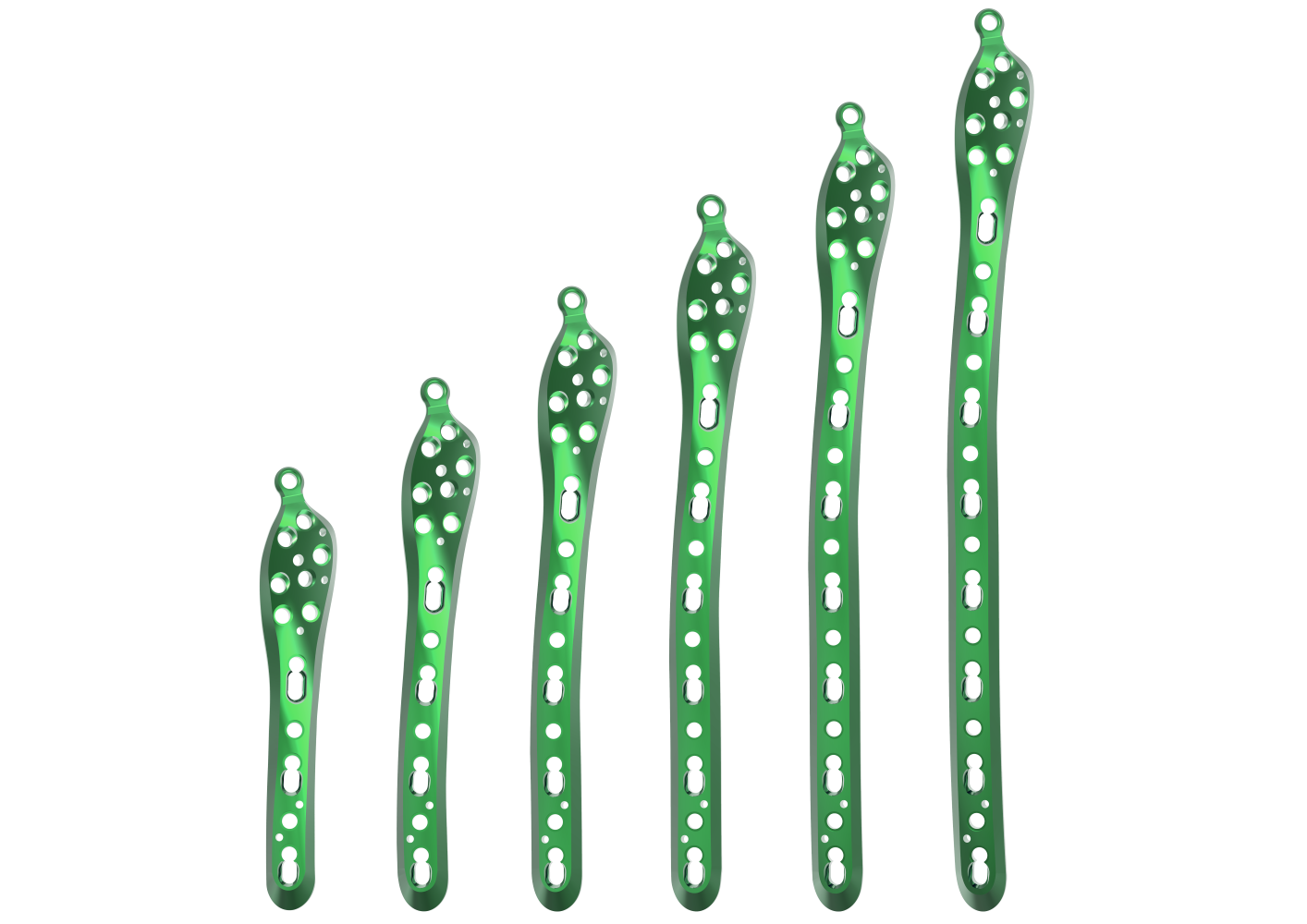

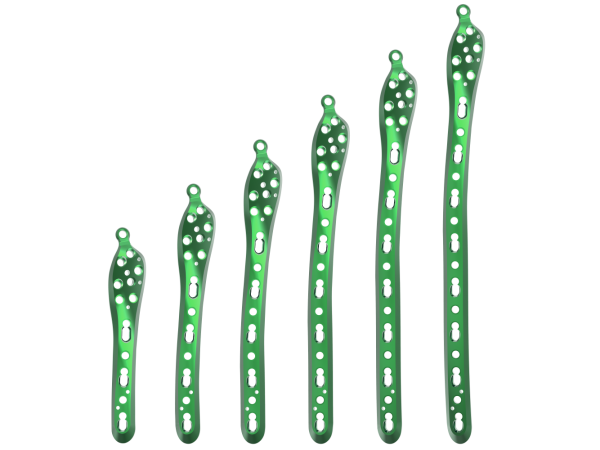

TRUE LOCK Distal Tibia Medial Anatomic Plate

TRUE LOCK Distal Tibia Medial Anatomic Plates are for fixation of complex intra and extra articular fractures and osteotomies of the distal tibia.

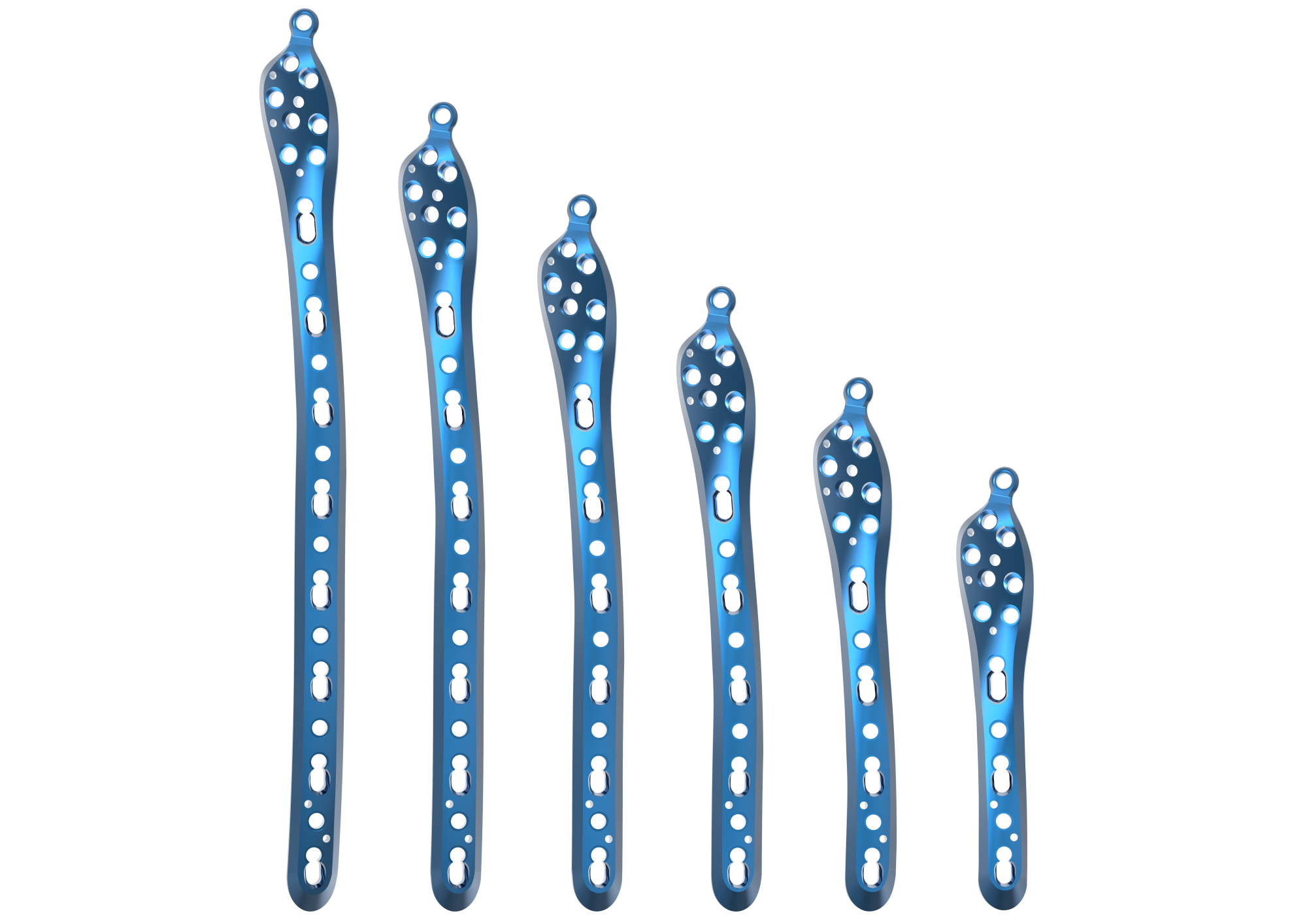

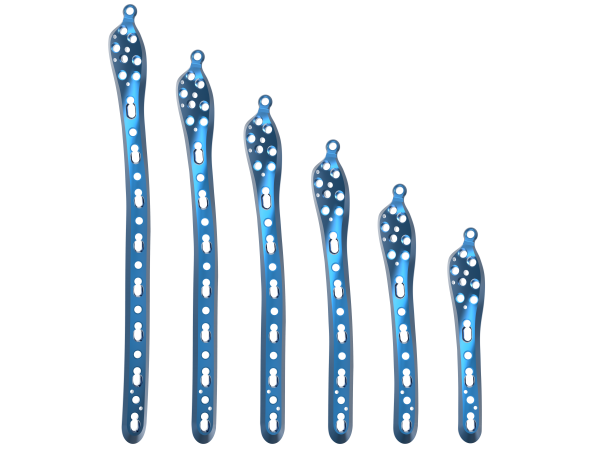

Anatomical plate; right & left

7 hole option between 5-17

TRUE LOCK Distal Tibia Medial Anatomic Plates are made of Ti6Al4V ELI material (ASTM F136)

Low profile plate.
Elongated hole in shaft aids in initial plate positioning.

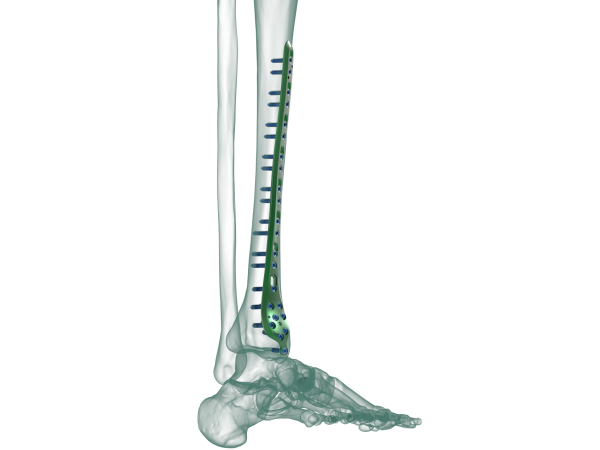

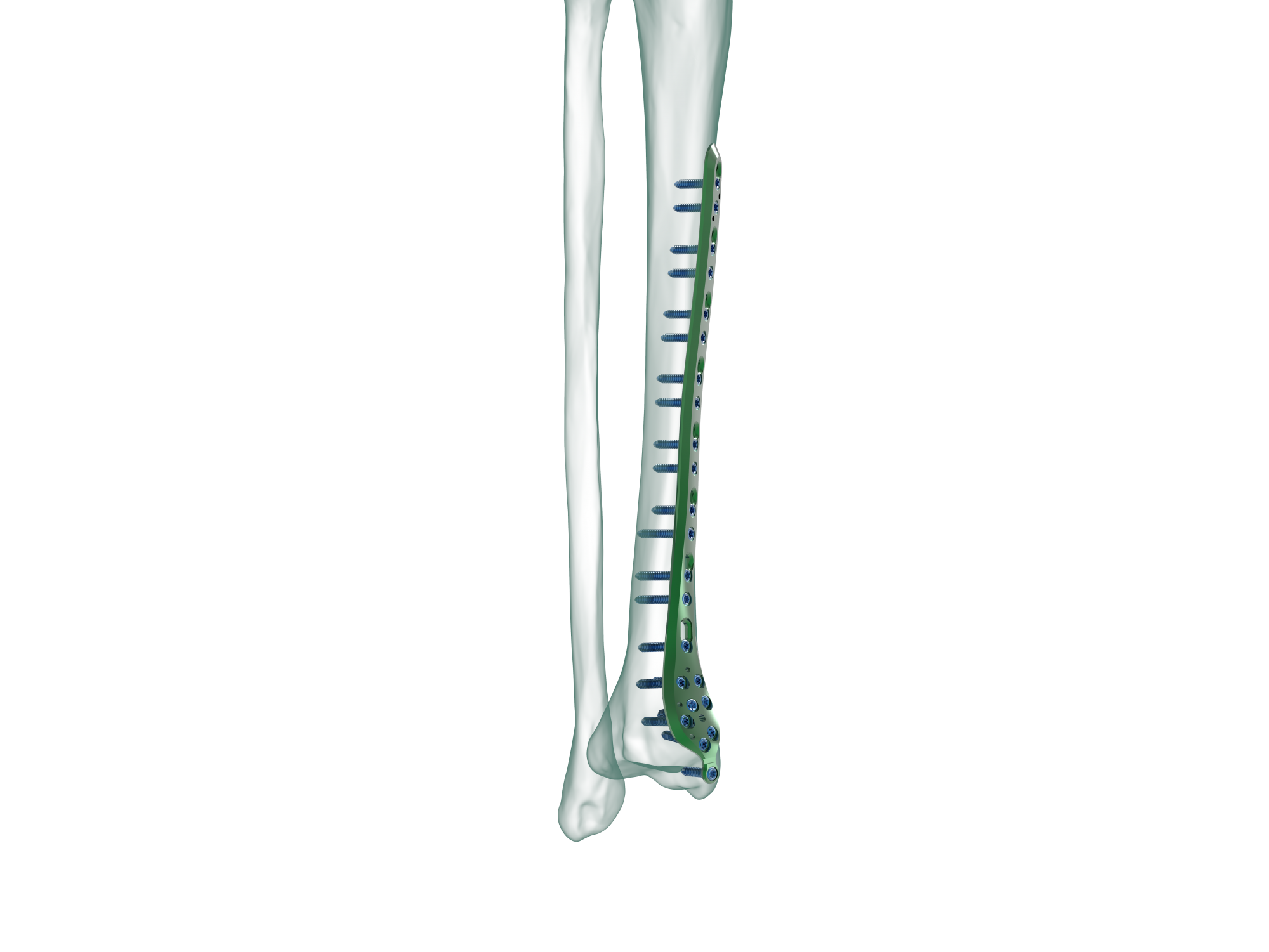

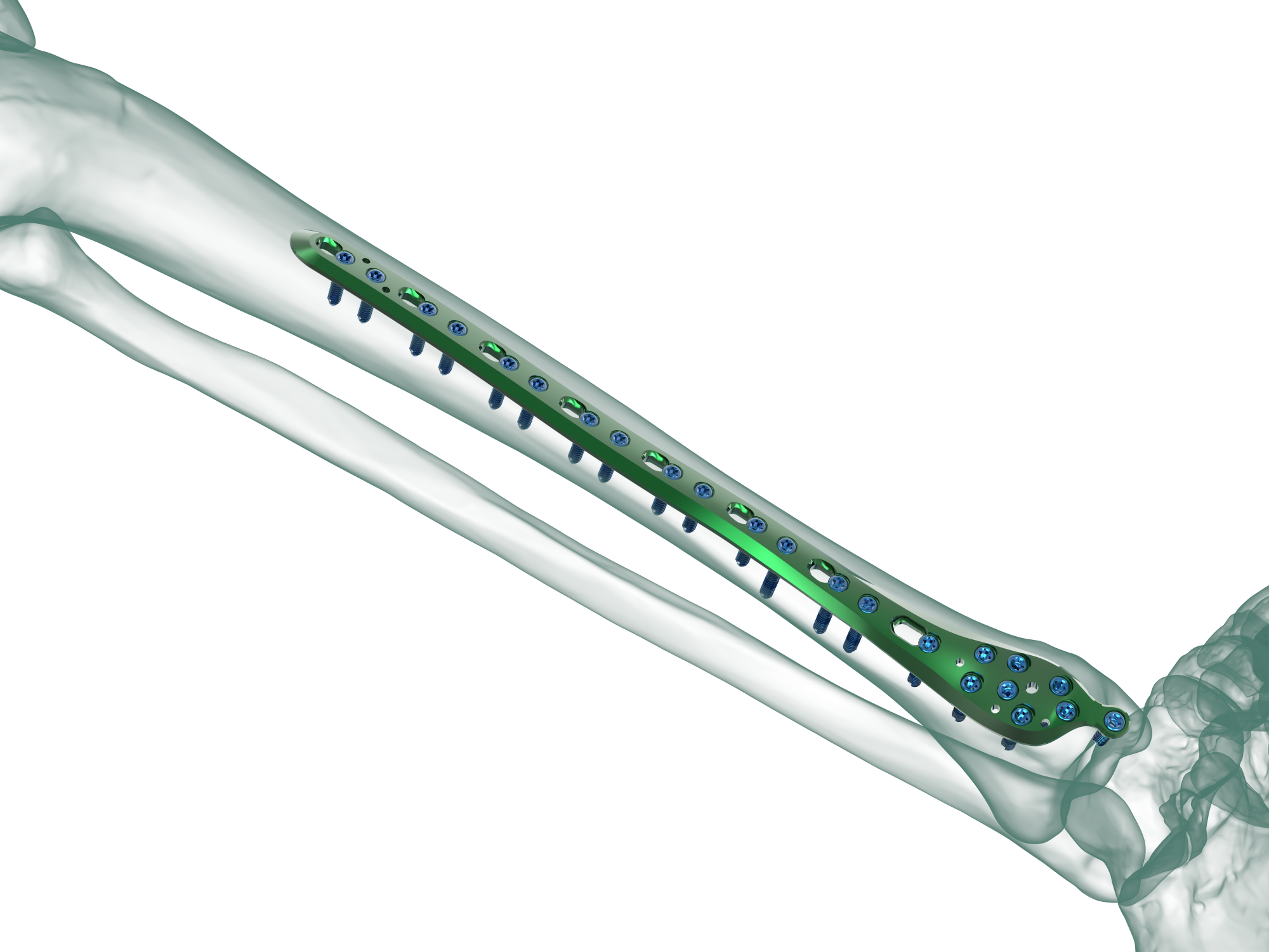

Anatomically contoured; plate is twisted 20° and bent to fit the distal tibia.
Distal tab for optional medial malleolus screw accepts 3.5 mm locking, 2.7 mm cortex, 3.5 mm cortex, 4.0 mm cortex or 4.0 mm cancellous bone screws.
Pointed proximal plate end for percutaneous plate insertion.
At the cancellous part of the bone near the joint, 4,0 mm cancellous locking screw option supports plate and screw fit well; prevents it from pull out .
Kirschner wire holes accept Kirschner wires (up to 2.0 mm) to temporarily fix the plate to the distal fibula, to temporarily reduce articular fragments, and to confirm the location of the plate, relative to the distal fibula.
